Description
Specifications
• Three temperature options.
• Compatible with DR circuit breakers offering safety against electric shocks.
• Electric contacts in silver which guarantees more durability.
• Lower installation pressure: beginning at 0.9 mwc.
• Two years warranty for plastic parts (check warranty ceritificate).

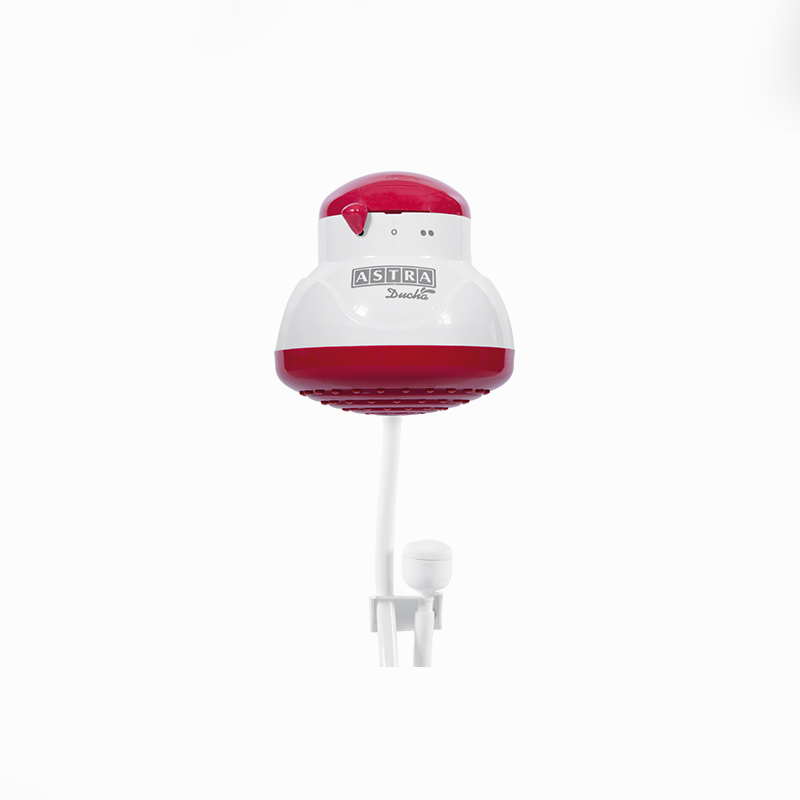

Colors

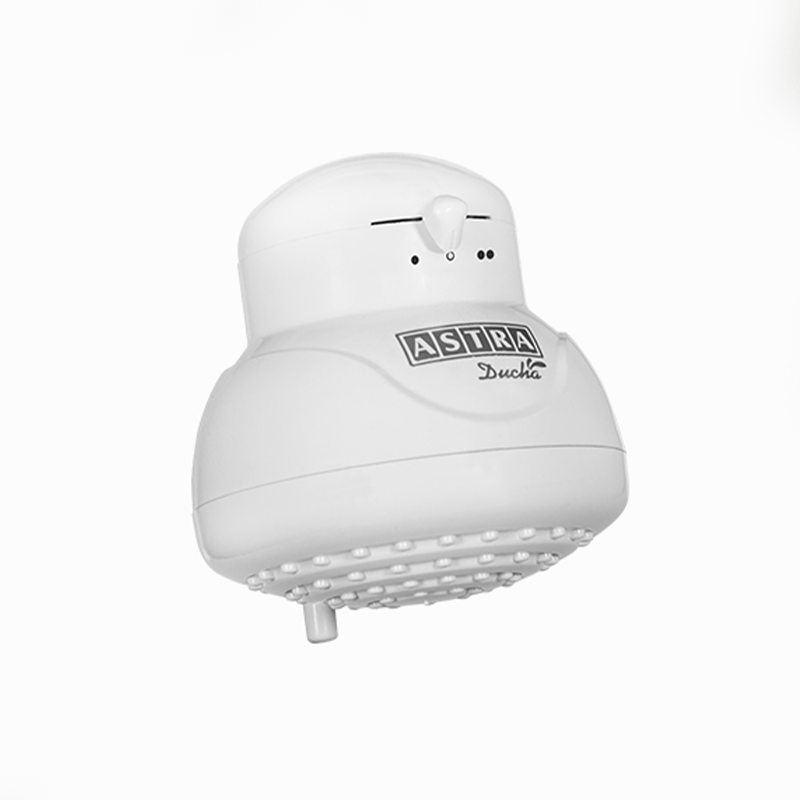

White (BR)
Black (PR)
Red (BRD)
Chromed
Technical Information
| Astra Ducha | |||||||
| Code | Power | Colors | Indicated circuit breaker | Indicated Heating element | |||
| 127 V | 220 V | 127 V | 220 V | 127 V | 220 V | ||
| DE32V1 | DE32V2 | 3200 W | White, Black and Red | 32 A | 20 A | RE32V1 | RE32V2 |
| DE45V1 | DE45V2 | 4500 W | 40 A | 25 A | RE45V1 | RE45V2 | |
| DE55V1 | DE55V2 | 5500 W | 50 A | 32 A | RE55V1 | – | |
| DEC32V1 | DEC32V2 | 3200 W | Chromed | 32 A | 20 A | RE32V1 | RE32V2 |
| DEC55V1 | – | 5500 W | 50 A | 32 A | RE55V1 | RE55V2 | |
Video
Regulation
Energy Efficiency Stamp
• Energy conservation program that authorizes use of information stamps to warn consumer of energy efficiency of electric equipment for instantaneous water heaters.
• Authorization to use stamps is obtained through conformity of products according to regulation RESP/022 – AAQ, from INMETRO.
Quality Tests
• Current leakage test: to guarantee compatibility of electric shower with DR circuit breaker.
• Hydraulic test: to guarantee electric shower is working on low and high presure without water leakage.
• Performance and electric conformity test: to check if nominal power values and tension are according to specify.
